FerMac 320

FerMac 320 Microbial Culture

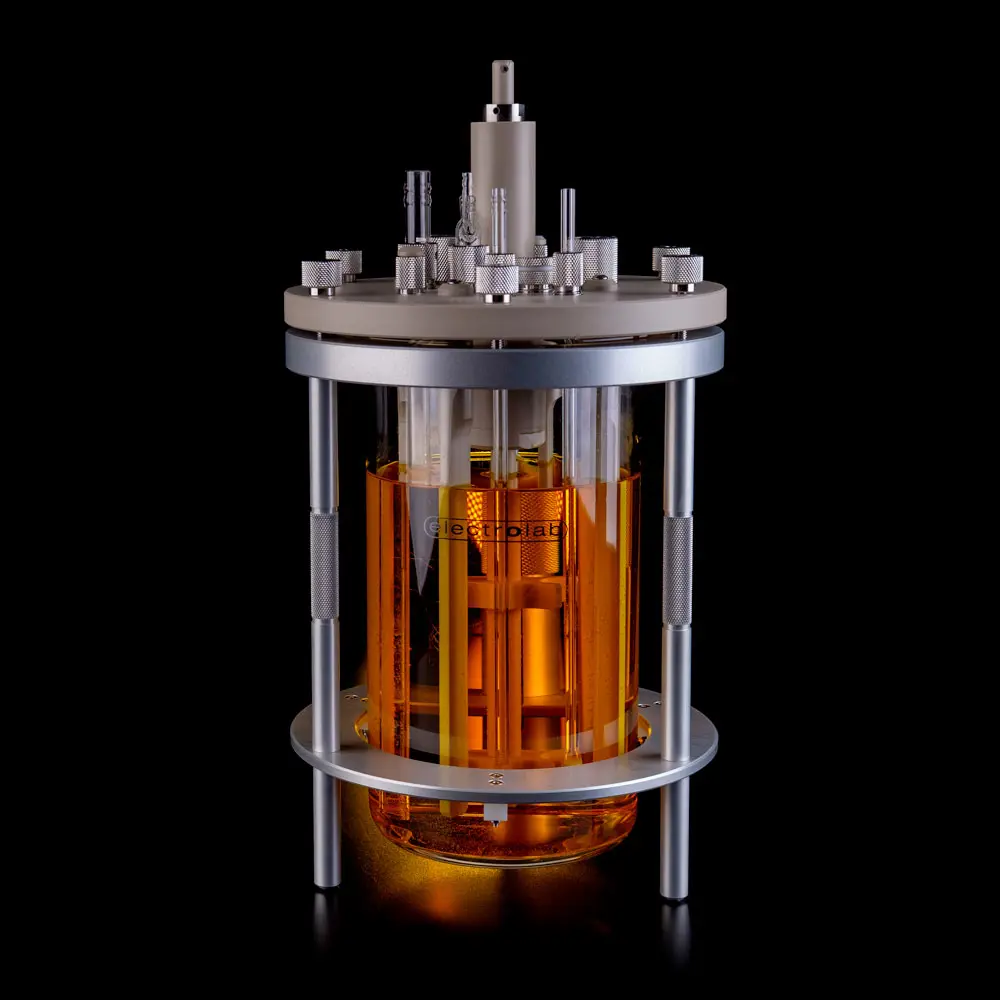

This version of the FerMac 320 has a vessel specifically designed for microbial culture and features a flat bottom.

Key features

  • Specially designed flat-bottom vessel; designed for ease of handling
  • Single-wall glassware standard and recommended for majority of applications (jacketed glassware available as an option)
  • Glassware protected in a metal tripod support frame
  • Gas flow system with dedicated flow control for Air, with option for other gases.
  • Suitable for aerobic, micro-aerobic or anaerobic processes
  • When used with the Hamilton VisiFerm dO sensor, a wider range of percentage saturation can be measured using a single sensor, often replacing the need for measuring redox.
  • pH control by liquid acid and base addition
  • Standard temperature control up to 50oC, with high-temperature upgrade available.
  • Cooling coil included for process cooling
  • Wide range of impeller designs and sizes, with efficient baffle assembly to aid mixing and gas transfer.
  • Lipseal driveshaft supplied as standard. Magnetically-coupled driveshaft available as an option
  • Sparger design either standard L-type (with a series of holes on the underside); versions with interchangeable tip available.
  • Speed range up to 1200rpm for most bioreactor sizes
  • User selectable stirrer/air valve cascade

The flat-blade turbine impellers, combined with the baffles, help create vigorous mixing, ensuring adequate gas transfer for even the most oxygen-demanding processes.

The introduction of gases into the vessel is neatly and efficiently achieved by the separate gas flow service plate. This provides automated control of Air into the bioreactor. For particularly demanding applications, O2-enriched air can supplement the Air flow, and other gas control can be added where your process demands. Each of these gases has a dedicated flow meter (rotameter) with “easy change” flow tubes; allowing users to change flow rates to suit their application or for when changing bioreactor sizes.

Alternatively, mass flow controllers are available.
Gas can be sparged through the media, into the head space, or both. Different sparge designs are available, including a version which accept different tip types.

Bioreactors

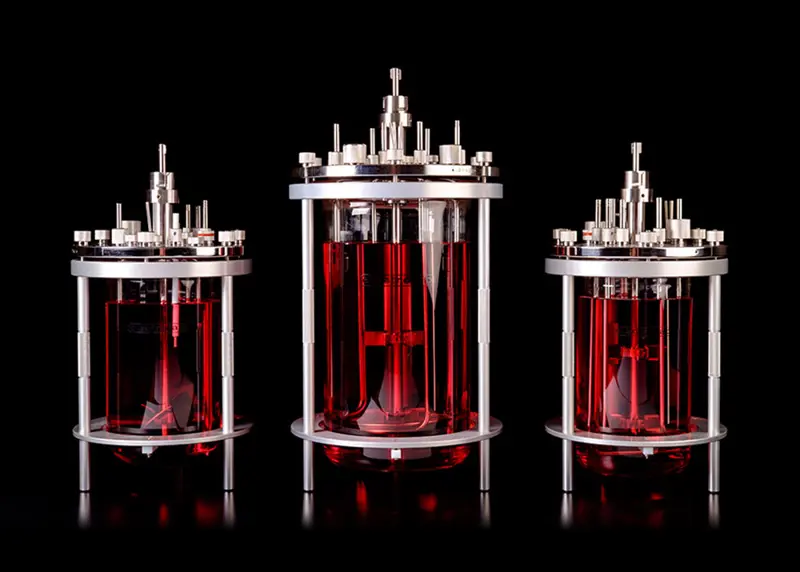

FerMac autoclavable bioreactors for the 320 are available in 0.5, 1, 2, 3, 5, 10 and 15 litre working volumes (18L for cell culture) and feature our easy coupling drive shaft design - enabling replacement in seconds and minimising down-time. Single-use rigid bioreactors are available in volumes up to 15L.
